Industrial Strainer Filter Housing Manufacturer, SS Basket Strainer Filter Housing & SS Single Strainer Filter Housing Supplier in India

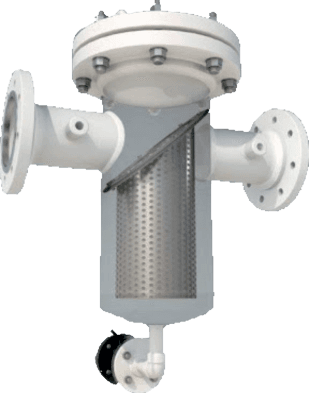

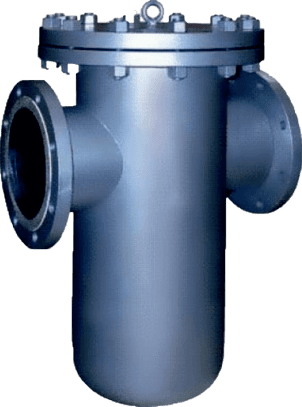

VVIOK Industry is a premier Industrial filter manufacturer headquartered in Ahmedabad, Gujarat, India, specializing in the precision engineering and custom fabrication of high-capacity SS Basket Strainer Filter housing systems. Designed to protect mission-critical pipeline equipment such as pumps, flow meters, heat exchangers, spray nozzles, valves, and analytical instrumentation from abrasive wear and catastrophic debris damage, our industrial strainer vessels deliver exceptional particle capture efficiency with minimal system pressure drop. Engineered from certified stainless steel (AISI 304, 304L, 316, 316L) and high-performance alloys, our strainer housings ensure 100% bypass-free operation under continuous, rigorous industrial environments.
To accommodate distinct flow dynamics, piping configurations, and maintenance schedules, we manufacture multiple Strainer filter housing types tailored to industry-specific demands. For batch processes, intermittent operations, or installations where brief line shutdowns are permissible during screen servicing, our SS Single Strainer Filter Housing (simplex basket strainer) offers an economical, space-saving, and highly dependable solution featuring an exceptionally high free open area ratio. For continuous 24/7 operating facilities where liquid flow cannot be interrupted, we engineer heavy-duty Duplex Strainer Filter Housings equipped with integrated three-way diverter valves or synchronous butterfly valve manifolds, permitting uninterrupted basket cleaning and changeout. Additionally, our engineered multi-basket vessels handle large intake volumes up to 3,500 m³/hr for municipal water, cooling towers, and power generation.
The core filtering element inside every strainer vessel is an engineered stainless steel basket. Selecting the optimal basket filter mesh size and strainer filter mesh size is fundamental to balancing particulate capture efficiency against differential pressure build-up. Our strainer vessels support an extensive range of filtration media—from heavy-duty perforated sheet metal cylinders (1 mm to 10 mm hole diameters) for coarse straining, to multi-layer woven stainless steel wire cloth and sintered metal composite linings. Whether your process requires coarse debris retention or an ultra-precise strainer micron size rating ranging from coarse 2,000 microns down to 5 microns, VVIOK Industry customizes basket geometry to deliver maximum dirt-holding capacity and prolonged operating cycles.
Every SS Basket Strainer Filter housing fabricated at our Ahmedabad manufacturing plant adheres strictly to ASME Section VIII Division 1 guidelines and international piping standards. Featuring ergonomic quick-opening swing-bolt covers with counterbalanced mechanical davit arm assemblies, tool-free basket changeout is accomplished safely within minutes. Equipped with zero-bypass elastomer seals (Viton, EPDM, PTFE, or Food-Grade Silicone), differential pressure gauge ports, bottom clean drain valves, and top air vent valves, our strainer filter housings serve chemical processing plants, oil refineries, pharmaceutical facilities, water treatment utilities, and food manufacturing plants globally with certified reliability.
Core Performance Features
Premier Industrial filter manufacturer in India engineering high-capacity, bypass-free industrial strainer vessels
Robust SS Basket Strainer Filter housing engineered with generous open area ratio (4:1 to 8:1) for minimal pressure drop
Compact, low-maintenance SS Single Strainer Filter Housing (simplex design) for efficient batch and pipeline pump protection
Complete portfolio of Strainer filter housing types including Simplex, Duplex continuous flow, Y-type, and Multi-basket
Extensive range of strainer filter mesh size and basket filter mesh size from coarse 10 mesh (2000 µm) to fine 400 mesh (37 µm)
Precision engineered strainer micron size capabilities down to 5 µm with multi-layer sintered stainless steel wire cloth
Ergonomic quick-opening swing-bolt lid with mechanical davit lifting arm for rapid, tool-free basket servicing
Machined internal basket seating step with Viton, PTFE, EPDM, or food-grade Silicone seals to guarantee zero bypass
Comprehensive Engineering Specifications, Technical Architecture & Mesh-to-Micron Selection Guide for Industrial Strainer Filter Housings:
1. Metallurgy, Fabrication Standards & Design Codes:
• Pressure Vessel Fabrication Standards: Engineered and manufactured in strict compliance with ASME Boiler & Pressure Vessel Code Section VIII Division 1, ASME B31.3 (Process Piping), and EN 13445 standards.
• Materials of Construction (Vessel Body & Cover): High-purity certified AISI 316L (ideal for aggressive chemicals, pharmaceutical fluids, and sanitary duties), AISI 304/304L (for industrial water and general chemical streams), Carbon Steel (ASTM A216 WCB / A106 Gr. B), Duplex 2205, Super Duplex 2507, and Hastelloy C-276.
• Basket & Screen Metallurgy: Heavy-gauge AISI 316L / AISI 304 perforated support cylinder lined with precision stainless steel woven wire mesh (Plain Weave, Twilled Weave, or Dutch Twill Weave) or multi-layer sintered metal mesh.
• Flange Standards & Pressure Classes: ANSI/ASME B16.5 Class 150#, 300#, 600# (Raised Face / Flat Face / RTJ), DIN/EN 1092-1 (PN10, PN16, PN25, PN40), JIS, or Sanitary Tri-Clamp connections.
• Surface Finishing: Glass bead blasted, chemical acid pickled and passivated in accordance with ASTM A380/A967, or mirror/electropolished (Ra < 0.4 µm) for pharmaceutical and food-grade hygiene.
2. Comprehensive Strainer Filter Housing Types & Configurations:
• SS Single Strainer Filter Housing (Simplex Basket Strainer): Features a single cylindrical pressure vessel and removable basket. Ideal for pump suction protection, batch liquid processing, water distribution, and chemical lines where flow can be briefly isolated during cleaning.
• Duplex Basket Strainer Filter Housing: Dual parallel vessel architecture interconnected by a single-lever 3-way diverter plug valve or synchronized butterfly valves. Enables continuous online flow diversion so one chamber is serviced while the other remains fully operational with zero downtime.
• Y-Type Strainer Filter Housing: Compact angled vessel configuration suitable for rigid horizontal or vertical pipelines with low-debris fluids, steam lines, and gas pipelines.
• T-Type Strainer Filter Housing: Inline or 90-degree right-angle flow arrangement offering high structural rigidity and large dirt holding capacity for compact skid installations.
• Multi-Basket Industrial Strainer Housing: Large-diameter custom vessels incorporating 2 to 8 parallel stainless steel baskets to handle high flow rates (up to 3,500 m³/hr) in municipal water intake, desalination, and power plant cooling loops.
3. Strainer Filter Mesh Size vs. Strainer Micron Size Conversion & Selection Table:
Selecting the correct basket filter mesh size and strainer filter mesh size is essential for ensuring process fluid clarity without causing premature differential pressure build-up. The table below outlines standard mesh counts, wire openings, and corresponding micron equivalents:
| Mesh Count | US Sieve Size | Opening (Inches) | Opening (Millimeters) | Strainer Micron Size (µm) | Primary Industrial Application |
|:---:|:---:|:---:|:---:|:---:|:---|
| 10 Mesh | No. 10 | 0.0787 in | 2.000 mm | 2,000 µm | Coarse river intake, raw municipal water, large gravel & scale protection |
| 20 Mesh | No. 20 | 0.0331 in | 0.841 mm | 841 µm | Pump suction protection, cooling tower water, cooling pond debris |
| 30 Mesh | No. 30 | 0.0234 in | 0.595 mm | 595 µm | Pre-filtration for heat exchangers, industrial raw water, pulp slurry |
| 40 Mesh | No. 40 | 0.0165 in | 0.400 mm | 400 µm | Fuel oil filtration, general chemical process pipelines, lube oil lines |
| 60 Mesh | No. 60 | 0.0098 in | 0.250 mm | 250 µm | Spray nozzle protection, boiler feed water, boiler blowdown recovery |
| 80 Mesh | No. 80 | 0.0070 in | 0.177 mm | 177 µm | Resin trap safeguard, fine spray orifice protection, paint & resins |
| 100 Mesh | No. 100 | 0.0059 in | 0.149 mm | 149 µm | Edible oils, beverage syrup clarification, petrochemical fuels, solvents |
| 150 Mesh | No. 140 | 0.0041 in | 0.105 mm | 105 µm | Hydraulic fluid filtration, pharmaceutical fluid pre-treatment, ink |
| 200 Mesh | No. 200 | 0.0029 in | 0.074 mm | 74 µm | Fine particulate retention, pre-RO cartridge safeguard, fine chemicals |
| 325 Mesh | No. 325 | 0.0017 in | 0.044 mm | 44 µm | Fine cosmetic emulsions, high-grade liquid inks, pharmaceutical syrup |
| 400 Mesh | No. 400 | 0.0015 in | 0.037 mm | 37 µm | Ultra-fine stainless steel wire mesh filtration, micro-particle retention |
| Sintered Mesh | Special | 0.0002–0.0010 in| 0.005–0.025 mm | 5 to 25 µm | High-temperature steam, aggressive solvents, sub-micron catalyst recovery |
4. Hydrodynamic Performance, Pressure Drop & Open Area Ratio:
• Free Open Area Ratio (OAR): High-efficiency basket design provides a free screen open area equal to 4:1 to 8:1 minimum relative to the internal pipe cross-sectional area, ensuring substantial dirt cake accumulation before delta-P rises.
• Clean Pressure Drop (ΔP): Extremely low clean initial pressure drop (< 0.1 bar / 1.5 psi at rated volumetric flow velocity).
• Terminal Differential Pressure: Recommended basket cleanout or backwash threshold at ΔP of 0.8 bar to 1.0 bar (12 to 15 psi).
• Design Operating Pressure: Rated for standard 10 bar to 25 bar (150 psi to 360 psi); custom engineered heavy-wall vessels available up to 100 bar (1450 psi).
• Design Temperature Range: -20°C to +250°C (depending on elastomer seal compatibility and insulation jacket configuration).
5. Ergonomic Closures, Zero-Bypass Sealing & Instrumentation:
• Quick-Opening Swing Eye-Bolt Cover: Heavy-duty hinged lid with drop-in eye bolts allowing tool-free opening and closing in under 3 minutes.
• Davit Lifting Mechanism: Integrated counterbalanced mechanical davit arm on larger vessels (DN150 / 6" and above) enabling safe, single-operator lid pivoting.
• Precision Basket Sealing: Machined internal seating step with positive O-ring or flat gasket compression ring completely eliminates particulate bypass around basket edges.
• Gauge & Vent Ports: 1/2" or 3/4" BSP/NPT top vent port, bottom flush drain port, and differential pressure (DP) gauge tapping ports on inlet and outlet nozzles.
• Quality Control Dossier: 100% Hydrostatic pressure testing at 1.5x design pressure, dye penetrant examination (DPE) on weld seams, positive material identification (PMI), and EN 10204 3.1 Material Test Certificates (MTC).
