Stainless Steel Multi Cartridge Filter Housing Manufacturer & Supplier in India

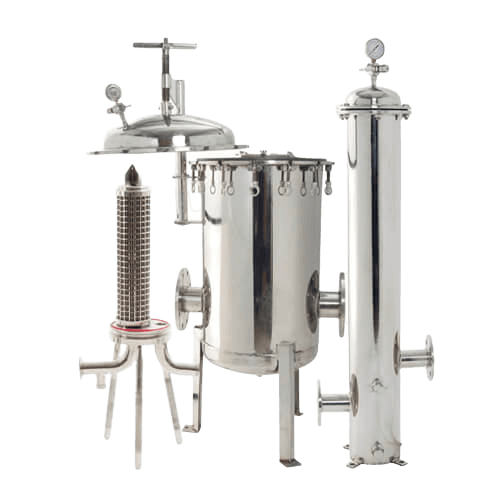

VVIOK Industry is an established multi cartridge filter housing manufacturer based in Ahmedabad, Gujarat, engineering high-capacity industrial liquid and gas purification vessels. Fabricated from certified AISI 304, AISI 316, and sanitary 316L stainless steel, every heavy-duty stainless steel multi cartridge filter housing is designed to accommodate multiple filter cartridges (ranging from 3-round to over 100-round configurations in 10", 20", 30", and 40" lengths). Built in compliance with ASME Section VIII and sanitary GMP codes, our pressure vessels ensure complete bypass-free separation under high operating pressures up to 16 bar and temperatures up to 200°C.
As a trusted multi cartridge filter housing supplier, we provide versatile vessel architectures designed for Double Open End (DOE), Code 7 (226 bayonet), and Code 3 (222 O-ring) cartridge adapters. Equipped with internal tie rods, top hold-down compression plates, and precision machined tube sheets, each multi cartridge filter unit guarantees zero fluid channeling and exceptional mechanical stability during fluctuating hydraulic surges. From pharmaceutical WFI (Water for Injection) systems and food & beverage bottling to large-scale RO pre-treatment and chemical processing, our pressure vessels offer dependable microfiltration performance.
Furthermore, our modular multi cartridge vessels feature quick-opening davit arms, hydraulic lifting mechanisms, and swing-bolt closures, significantly reducing downtime during element change-outs. With electro-polished interior surface finishes (Ra < 0.4 µm) and passivated exteriors, VVIOK Industry delivers world-class industrial filtration solutions tailored to your plant requirements.
Core Performance Features
Engineered by a leading multi cartridge filter housing manufacturer utilizing certified AISI 304, 316, and 316L stainless steel
Heavy-duty stainless steel multi cartridge filter housing built to ASME Section VIII standards with operating pressures up to 16 bar
Versatile multi cartridge filter designs supporting 3, 5, 7, 9, 12, 18, 24, up to 100+ rounds in 10", 20", 30", and 40" lengths
Internal hold-down plate and tube sheet design ensuring complete zero-bypass sealing for DOE and SOE Code 7/Code 3 elements
Trusted multi cartridge filter housing supplier providing swing-bolt, clamp, and hydraulic davit-arm quick-opening mechanisms
Sanitary electro-polished inner surfaces (Ra < 0.4 µm) and passivated exteriors suitable for GMP and FDA regulated industries
High-throughput multi cartridge architecture maximizing on-stream efficiency while minimizing filter change-out downtime
Comprehensive Engineering Specifications for Stainless Steel Multi Cartridge Filter Housings:
1. Pressure Vessel Metallurgy & Design Codes:
• Vessel Shell & Dish Ends: Precision manufactured from certified AISI 304, AISI 316, and sanitary AISI 316L stainless steel
• Design & Manufacturing Standards: Designed in compliance with ASME Boiler and Pressure Vessel Code Section VIII, Division 1; CE-PED certified upon request
• Welding Integrity: 100% TIG / Orbital welding with argon purge backing; passivated and pickling-treated weld seams for corrosion prevention
• Surface Quality: Internal electro-polishing down to Ra < 0.4 µm for pharmaceutical and food applications; glass bead-blasted or buff-polished exterior
2. Housing Capacity, Rounds & Geometry:
• Cartridge Capacities: 3-Round, 5-Round, 7-Round, 9-Round, 12-Round, 18-Round, 24-Round, 30-Round, 48-Round, and custom vessels up to 120-Round
• Suitable Cartridge Lengths: 10 Inch (254 mm), 20 Inch (508 mm), 30 Inch (762 mm), and 40 Inch (1016 mm)
• Tube Sheet & Sealing Architecture: Heavy-gauge CNC-machined tube sheet ensuring perfect perpendicularity and positive O-ring compression
• Cartridge Hold-Down: Top spring-loaded compression plate with locking tie-rods preventing cartridge bypass and vibration during hydraulic pressure surges
3. Hydraulic Operating Conditions:
• Maximum Operating Pressure: Standard design 10 bar (150 psi); heavy-duty models engineered up to 16 bar (230 psi) and 25 bar custom
• Hydrostatic Test Pressure: 1.5x design pressure (tested up to 15 bar to 24 bar prior to dispatch)
• Operating Temperature Range: -20°C to 150°C (up to 200°C with high-temperature Viton or PTFE encapsulated gaskets)
• Flow Rates: Scalable flow handling from 5 m³/hr to over 500 m³/hr depending on cartridge rounds, micron rating, and fluid viscosity
4. Nozzles, Ports & Lid Lifting Mechanism:
• Inlet / Outlet Connections: 1" through 12" ANSI 150# Flanges, Table D/E Flanges, Sanitary Tri-Clamp (TC), or BSP/NPT Male/Female threads
• Flow Orientation: Bottom inlet / bottom outlet, side inlet / bottom outlet, or in-line opposite connections
• Auxiliaries: Top sanitary vent port (1/2" or 3/4" with pressure gauge & bleed valve) and bottom shell/clean drain ports with isolation valves
• Closure Options: Swing bolt assembly with heavy-duty eye nuts, quick-release sanitary V-clamp, or mechanical / hydraulic davit arm for effortless top lid lifting
5. Gasket Materials & Chemical Compatibility:
• Elastomeric Sealing: FDA-grade Food Silicone, EPDM, Viton (FKM), PTFE, and PTFE-encapsulated O-rings
• Chemical Compatibility: Resists concentrated acids, caustic washdown solutions, steam-in-place (SIP) sterilization, clean-in-place (CIP) chemicals, and organic solvents
