Pleated Filter Element Manufacturer & Industrial Strainer Company in India
VVIOK Industry is an established, premier industrial strainer manufacturer and high-precision filtration solutions provider based in Ahmedabad, India. In complex fluid handling pipelines, conventional flat wire mesh baskets and cylindrical screens often suffer from limited dirt-holding capacity, rapid clogging, and steep differential pressure spikes. Our high-performance Pleated Filter Element assemblies solve these critical operational challenges by dramatically expanding the active filtration surface area—delivering 3 to 5 times greater dirt retention and significantly extending on-stream runtime across chemical, petrochemical, pharmaceutical, polymer, oil & gas, and industrial water treatment installations worldwide.
As an ISO 9001:2015 certified strainer company, we fabricate each pleated element using multi-layered premium austenitic stainless steels, including AISI 304, AISI 316, and AISI 316L, as well as exotic alloys like Hastelloy and Monel for harsh corrosive fluids. Each element is engineered by folding durable Dutch weave, square weave, or sintered metal fiber mesh around a rigid perforated stainless steel inner core. This structural pleating geometry ensures exceptional collapse resistance under high differential pressures (ΔP up to 25 bar) while maintaining uniform pore distribution and precise micron ratings ranging from 1 micron up to 500 microns.
As a versatile, custom-focused filter strainer manufacturer, VVIOK Industry designs elements that are 100% cleanable and reusable through chemical baths, ultrasonic wash, or automated backflushing. Beyond standard simplex and duplex pipeline filter baskets, our advanced engineering capabilities position us as an innovative self cleaning strainer company, manufacturing replacement pleated inserts, scraper-compatible screens, and backwash elements for continuous, uninterrupted industrial filtration loops.
Whether your process demands custom-dimensioned filter cartridges for high-viscosity resins and polymers or heavy-duty replacement screens compatible with pipeline housings and acme strainers used in utility cooling water and petrochemical networks, VVIOK Industry delivers world-class engineering reliability. Every element undergoes bubble point integrity validation, weld radiography, dimensional verification, and comes backed by EN 10204 3.1 Material Test Certificates (MTC).
Core Performance Features
High-capacity Pleated Filter Element offering 3x to 5x higher filtration surface area than standard cylindrical screens
Precision engineering by a leading industrial strainer manufacturer complying with ASME and ISO 9001 standards
Trusted strainer company providing custom metallurgy in SS 304, SS 316, SS 316L, Hastelloy, and Monel alloys
Specialized filter strainer manufacturer delivering micron ratings from 1 micron up to 500 microns (20 to 600 mesh)
Innovative self cleaning strainer company designing backwashable, cleanable, and reusable pleated screen assemblies
Universal compatibility engineered to retrofit standard pipeline housings, duplex systems, and acme strainers
Heavy-duty perforated stainless steel inner core engineered for collapse resistance up to 25 bar differential pressure (ΔP)
100% cleanable via ultrasonic cleaning, chemical washing, or steam backwashing with EN 10204 3.1 MTC verification
Comprehensive Engineering Specifications for Industrial Pleated Filter Elements & Strainers:
1. Design Standards & Structural Integrity:
- Fabrication Codes: ASME Section VIII Div 1 guidelines, ISO 2941 (Verification of Collapse/Burst Resistance), ISO 2942 (Verification of Fabrication Integrity).
- Quality Assurance: ISO 9001:2015 manufacturing controls with full metallurgical heat-number traceability.
- Pressure Differential: Engineered to withstand differential collapse pressures (ΔP) up to 25 bar (360 psi).
2. Materials of Construction (MOC):
- Filtration Mesh Layer: Stainless Steel AISI 304, SS 304L, SS 316, SS 316L, 904L, Duplex 2205, Hastelloy C-276, Monel 400.
- Inner & Outer Support Cores: Heavy-gauge perforated SS 304 / SS 316 sheet, spiral wound or longitudinal resistance welded.
- End Caps & Adapters: Solid machined or deep-drawn stainless steel plates (TIG welded without epoxy or adhesive).
- O-Rings & Gaskets: USP Class VI / FDA-grade Silicone, Viton (FKM), EPDM, PTFE envelope, or Buna-N.
3. Filtration Geometry & Surface Area:
- Pleat Height & Density: Precision-controlled pleat count (3 mm to 12 mm pleat depth) optimized for viscous fluid flow without pleat collapse.
- Surface Area Enhancement: 300% to 500% higher effective filtration area compared to standard smooth cylindrical filter baskets.
- Mesh Configurations: Plain weave, Twilled Dutch Weave (TDW), Reverse Dutch Weave, and multi-layer sintered metal fiber media.
4. Micron Ratings & Flow Performance:
- Nominal & Absolute Filtration Ratings: 1 Micron, 5 Micron, 10 Micron, 25 Micron, 50 Micron, up to 500 Microns (20 to 600 mesh equivalent).
- Operating Temperature Range: Continuous operation from -50°C to +350°C (suitable for thermal fluids, steam, and cryogenic fluids).
- Flow Capacity: High-throughput capacity from 1 m³/hr to 500+ m³/hr depending on housing diameter and fluid viscosity.
5. End-Cap Configurations & Adapters:
- Double Open Ended (DOE): Flat gasket seals on both ends with optional alignment tie-rods.
- Single Open Ended (SOE): Code 7 (226 O-ring with 2 locking tabs and spear/fin), Code 8 (222 O-ring with bayonet tabs and flat end), or Code 3 (222 O-ring open end with flat closed cap).

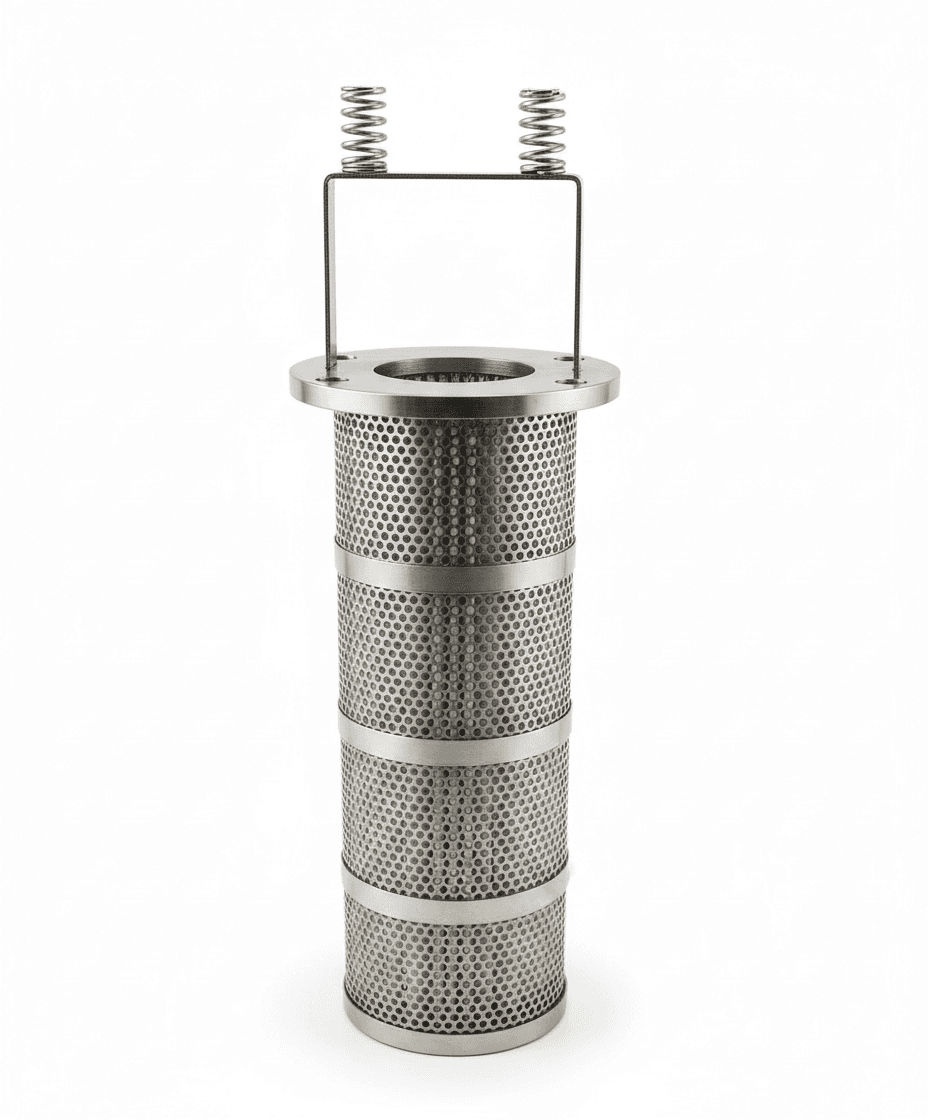

- Flanged Collar Rim: Direct drop-in top flange collar with lifting handles for simplex and duplex pipeline strainer housings.
- Threaded Adapters: NPT, BSP, or sanitary Tri-Clamp (TC) thread-lock attachments.
6. Cleaning, Reusability & Validation:
- Cleanability: 100% regenerable via chemical soak, ultrasonic tank immersion, high-pressure liquid flushing, or reverse steam sterilisation.
- Factory Acceptance Testing: Bubble point integrity testing (ASTM E128), dimensional verification, dye penetrant weld testing, and EN 10204 3.1 MTC dossier.
