Stainless Steel Basket Strainer Manufacturer, Industrial SS Basket Filter & Duplex Strainer Supplier in India

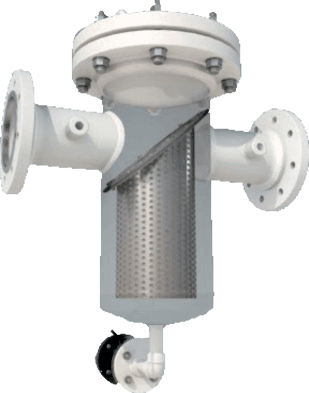

VVIOK Industry is an established, high-precision basket strainer manufacturer and engineering enterprise based in Ahmedabad, India. Designed for heavy-duty pipeline protection, our simplex and multi-basket systems prevent catastrophic damage to expensive downstream pumps, valves, heat exchangers, flow meters, and spray nozzles by intercepting pipeline scale, particulate debris, and suspended solids. As an ISO 9001:2015 certified basket strainer supplier, we design robust filtration assemblies engineered in full compliance with ASME Section VIII Division 1 and ASME B16.34 standards, delivering reliable fluid clarification across chemical processing, oil & gas, pharmaceuticals, marine, and power generation sectors.

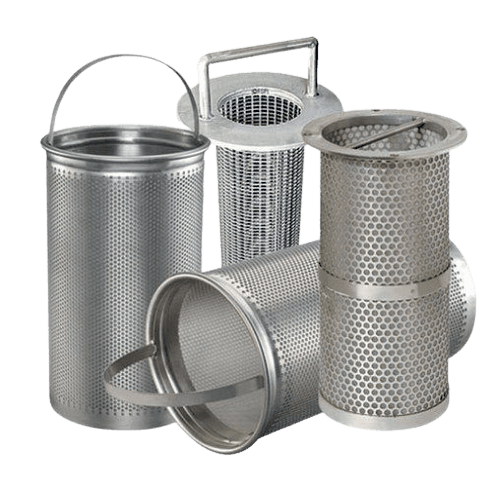

Recognized among premier basket filter manufacturers, we build each filtration vessel and internal assembly using certified materials, including carbon steel, AISI 304, AISI 316, and AISI 316L stainless steel, as well as Duplex and Hastelloy for highly corrosive or saline fluids. At the heart of each unit is a heavy-duty stainless steel strainer basket industrial grade screen, constructed with a thick perforated metal backing plate lined with high-precision wire mesh down to 20 microns. Whether you require a standard ss basket strainer for water utility lines or an electro-polished stainless steel basket strainer for sanitary pharmaceutical operations, our baskets feature top lifting handles, machined sealing rings, and heavy-gauge handles for rapid, tool-free maintenance.
To ensure continuous, zero-downtime operation in critical process lines, VVIOK Industry is an industry-leading duplex basket strainer manufacturer. Our duplex configurations incorporate dual filtration chambers interconnected via an integrated 3-way or 4-way diverter ball valve or equalizing butterfly valves. When one chamber fills with particulate, operators can switch fluid flow to the parallel chamber without pausing production, allowing safe basket servicing. This continuous-flow capability makes our assemblies the preferred choice for continuous cooling towers, boiler feed lines, fuel oil handling, and petrochemical transfer loops.
As a specialized basket type strainer manufacturer, we provide standard ANSI 150#, 300#, and 600# flanged connections in sizes from 1 inch up to 48+ inches. Furthermore, every stainless steel basket filter is engineered with a generous open area ratio—providing 400% to 600% greater free straining area than the connecting pipe cross-section to minimize differential pressure drop (ΔP). Each strainer undergoes comprehensive hydrostatic pressure testing, radiographic weld inspection, and comes backed by EN 10204 3.1 Material Test Certificates (MTC) and quality dossiers.
Core Performance Features
Precision fabrication by a leading basket strainer manufacturer compliant with ASME Section VIII and ASME B16.34 standards
Trusted basket strainer supplier providing simplex and multi-basket configurations from 1" NB up to 48" NB
Engineered by top basket filter manufacturers using certified carbon steel, SS 304, SS 316, SS 316L, and Duplex alloys
Heavy-duty stainless steel strainer basket industrial design with perforated sheet backing and precision wire mesh lining (down to 20 microns)
Corrosion-resistant ss basket strainer and electro-polished stainless steel basket strainer for sanitary and chemical duties
Zero-downtime dual chamber design from a premier duplex basket strainer manufacturer with synchronized diverter valves
Custom fluid dynamics from an expert basket type strainer manufacturer ensuring low pressure drop (ΔP)
High-capacity stainless steel basket filter delivering 400% to 600% open screen area relative to pipe cross-section
Comprehensive Engineering Specifications for Industrial Basket Strainers & Filters:
1. Design Standards & Structural Compliance:
- Pressure Vessel Codes: ASME Boiler and Pressure Vessel Code Section VIII Division 1 guidelines and ASME B16.34 (Valves Flanged, Threaded and Welding End).
- Flange Standards: ASME B16.5 (1/2" to 24") and ASME B16.47 Series A/B (26" to 48"), DIN / EN 1092-1 flanges.
- Quality System: ISO 9001:2015 certified design, welding, and quality management protocols.
2. Materials of Construction (MOC):
- Strainer Housing Body: Cast Carbon Steel (ASTM A216 WCB), Fabricated Carbon Steel (IS 2062 Gr. B), Austenitic Stainless Steel AISI 304, SS 304L, SS 316, SS 316L, 904L, Duplex Stainless Steel 2205, Super Duplex 2507, Hastelloy C-276.
- Internal Strainer Basket: Heavy-gauge AISI 304 / SS 316 sheet with staggered round perforations (1 mm to 6 mm) lined with precision Dutch weave or plain weave wire mesh (20 to 500 mesh / 25 µm).
- Bolting & Fasteners: ASTM A193 B7 / A194 2H for carbon steel; ASTM A193 B8 / A194 Gr. 8 for stainless steel systems.
- O-Rings & Gaskets: Spiral wound SS 316 with graphite filler, PTFE, Viton (FKM), EPDM, or Buna-N.
3. Sizing & Pressure Ratings:
- Nominal Pipe Diameter: 1" NB to 48" NB (DN25 to DN1200, custom larger sizes available upon request).
- Pressure Rating Classes: ANSI Class 150#, Class 300#, Class 600# (PN10, PN16, PN25, PN40, PN64).
- End Connections: Raised Face Flanged (RF), Flat Face (FF), Ring Type Joint (RTJ), Butt Weld (BW).
4. Hydraulic Performance & Flow Capacity:
- Open Area Ratio: 4:1 to 6:1 (400% to 600% free straining screen area relative to nominal pipe cross-section) minimizing initial pressure drop (ΔP < 0.1 bar).
- Flow Rates: 5 m³/hr to 2500+ m³/hr depending on housing diameter, basket mesh rating, and liquid viscosity.
- Drain & Vent Ports: NPT/flanged drain connection at vessel base and air vent at top cover for safe depressurization.
5. Quick-Access Cover Mechanisms:
- Davit Arm Lifting Assembly: Ergonomic mechanical handwheel davit for effortless top cover lifting on large sizes (6" NB and above).
- Quick-Opening Swing Bolt / Eyebolt Closures: Rapid tool-free basket servicing without removing loose hardware.
- Traditional Bolted Flange: High-integrity closure for high-pressure and critical lethal chemical services.
6. Testing, Inspection & Documentation:
- 100% Hydrostatic shell pressure test at 1.5 times maximum allowable working pressure (MAWP).
- Pneumatic seat and seal leak testing at 6 bar.
- Non-Destructive Testing (NDT): Radiography (RT), Dye Penetrant Testing (DPT), and Ultrasonic Testing (UT) of pressure boundary welds.
- Full QA Dossier: EN 10204 3.1 Material Test Certificates (MTC), hydrostatic test charts, and dimensional inspection reports.
