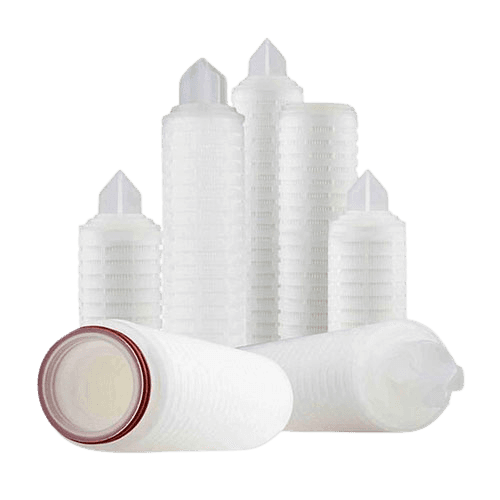

PP Pleated Filter Cartridge Manufacturer, Polypropylene Pleated Filter Cartridges Supplier in India
VVIOK Industry is an established, high-precision pleated filter cartridge manufacturer and technical engineering pioneer based in Ahmedabad, Gujarat. Designed to satisfy rigorous micro-filtration demands across sterile pharmaceuticals, biotechnology, semiconductor manufacturing, chemical processing, and food & beverage operations, our advanced SS and PP pleated filter cartridge solutions deliver superior particle retention efficiency, high throughput, and exceptionally low initial pressure drop. Certified under ISO 9001:2015 quality standards and complying with US FDA 21 CFR regulations for food and biological contact, our cartridges provide absolute-rated clarification for critical process streams.
As an accredited, global pleated filter cartridge supplier, VVIOK Industry engineers each filter element using 100% pure virgin polypropylene micro-fiber media. Our state-of-the-art pleated matrix maximizes filtration surface area—offering up to 0.65 m² (7.0 sq. ft.) of active media per 10-inch length. This dense pleat configuration delivers high dirt-holding capacity and dramatically extends on-stream operating life compared to conventional depth or spun cartridges. Recognized among India's foremost pleated cartridge filters manufacturer facilities, we construct these cartridges using thermal melt-bonding technology, completely eliminating glues, binders, resins, or surfactants to ensure zero fiber migration and ultra-low extractables.
Our heavy-duty polypropylene pleated filter cartridges are engineered with reinforced polypropylene inner cores, outer cages, and thermally welded end-caps to withstand continuous operating temperatures up to 80°C and forward differential collapse pressures up to 4.2 bar (60 psi). Complementing our polymeric range, we also design robust stainless steel pleated filter cartridge assemblies and re-usable ss pleated filter cartridge units fabricated from AISI 304/316L woven wire mesh, engineered specifically for high-temperature steam sterilization, corrosive solvents, and differential pressures exceeding 10 bar. Whether your system requires a standard double open end (DOE) configuration or sanitary single open end (SOE) designs such as Code 7 (226 O-ring with bayonet locking tabs) or Code 3 (222 O-ring with flat cap), each pleated polypropylene filter cartridge guarantees leak-free, bypass-free seating inside single or multi-cartridge housings.
Every batch undergoes rigorous quality assurance, including forward flow integrity testing, bubble point validation, and DI water flushing to meet high-purity USP Class VI biological safety criteria. With micron ratings ranging from fine 0.1 µm and 0.2 µm absolute membranes up to 100 µm nominal clarifying grades, and standard lengths from 10 inches to 40 inches, VVIOK Industry delivers customized solutions tailored to exact client operational requirements worldwide.
Core Performance Features
Fabricated by an accredited pleated filter cartridge manufacturer utilizing 100% virgin polypropylene microfiber media
Supplied globally by an ISO 9001:2015 certified pleated filter cartridge supplier with full cleanroom batch traceability
Advanced thermal melt-welding from a leading pleated cartridge filters manufacturer with zero binders, adhesives, or glues
High-surface-area SS and PP pleated filter cartridge delivering up to 0.65 m² active filtration area per 10-inch length
Ultra-durable polypropylene pleated filter cartridges resisting forward differential collapse pressures up to 4.2 bar
Precision-engineered pleated polypropylene filter cartridge with absolute micron retention from 0.1 µm to 100 µm
Heavy-duty stainless steel pleated filter cartridge and cleanable ss pleated filter cartridge options for aggressive chemicals and steam
Universal adapter compatibility including DOE, Code 7 (226 Bayonet), Code 3 (222 Flat), and Code 8 (222 Spear)
Compliant with US FDA 21 CFR 177.1520 and USP Class VI bio-safety standards for pharmaceutical and food grade liquids
Comprehensive Engineering Specifications for PP Pleated Filter Cartridges:
1. Materials of Construction (MOC):
- Filtration Media: 100% High-Purity Melt-Blown Polypropylene (PP) Microfiber Matrix.
- Upstream & Downstream Support Layers: Virgin Spunbond Polypropylene Sheeting.
- Inner Core, Outer Cage & End Adapters: Virgin Polypropylene (Optional reinforced SS 304/316 core for high-temperature service).
- Sealing O-Rings & Gaskets: Silicone, EPDM, Viton (FKM), PTFE-encapsulated Viton, or Buna-N (FDA 21 CFR 177 compliant).
- Construction Assembly: 100% Thermal Fusion Melt-Bonding (Zero glues, adhesives, binders, or chemical surfactants).
2. Micron Ratings & Filtration Efficiencies:
- Absolute Pore Ratings (Beta Ratio β ≥ 5000 / 99.98% Efficiency): 0.1 µm, 0.2 µm, 0.45 µm, 1.0 µm, 3.0 µm, 5.0 µm.
- Nominal Clarification Ratings (90% to 95% Efficiency): 0.5 µm, 1 µm, 3 µm, 5 µm, 10 µm, 20 µm, 50 µm, 75 µm, 100 µm.
- Filtration Surface Area: 0.55 m² to 0.65 m² (6.0 to 7.0 sq. ft.) per 10-inch (254 mm) cartridge element.
3. Standard Dimensions & Sizing:
- Nominal Lengths: 10 inches (254 mm), 20 inches (508 mm), 30 inches (762 mm), 40 inches (1016 mm).
- Outside Diameter (OD): Standard 2.5" (63 mm to 68 mm); High-Flow Big Blue 4.5" (115 mm) options available.
- Inside Diameter (ID): Standard 1.1" (28 mm).
4. End-Cap Configurations & Housing Adapters:
- DOE (Double Open End): Flat gasket seals at both ends for standard commercial filter vessels.
- Code 7 (SOE 226 O-Ring with Bayonet Locking Tabs & Fin/Spear End): High-security positive bayonet lock for sanitary pharmaceutical housings.
- Code 3 (SOE 222 O-Ring with Flat End / Bayonet): Double O-ring seal for sub-micron critical filtration vessels.
- Code 8 (SOE 222 O-Ring with Spear/Fin End): Universal sanitary pharmaceutical and biotech housing adapter.
5. Operating Parameters & Thermal Limits:
- Maximum Forward Differential Pressure: 4.2 bar (60 psi) @ 25°C; 2.1 bar (30 psi) @ 60°C; 1.0 bar (15 psi) @ 80°C.
- Maximum Recommended Operating Temperature: 80°C (176°F) continuous; sterilizable up to 121°C for 30-minute steam cycles.
- Recommended Replacement Differential Pressure: 2.0 to 2.4 bar (30 to 35 psi).
- Clean Water Flow Rate: ~25 to 30 LPM per 10-inch cartridge at initial ΔP < 0.1 bar (1.5 psi) for 0.45 µm rating.
6. Quality Standards, Bio-Safety & Compliance:
- Bio-Compatibility: Meets USP Class VI biological reactivity tests for plastics at 121°C.
- Food Contact Safety: Meets US FDA 21 CFR 177.1520 requirements for food and beverage contact.
- Non-Fiber Releasing: Fabricated in an ISO Class 7 cleanroom environment; 100% pre-flushed with 18 MΩ-cm deionized (DI) water.
- Full Documentation: Certificates of Quality, Endotoxin level certification, and extractables test dossiers provided.
