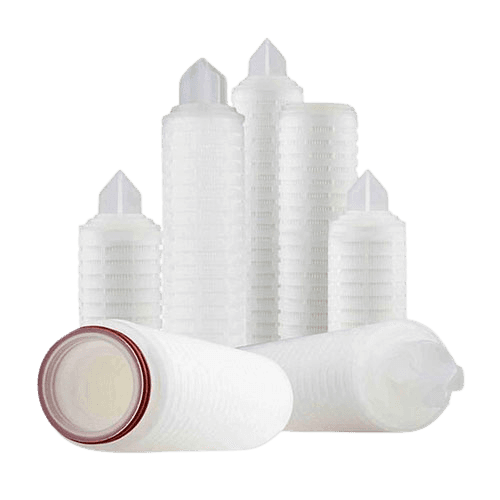

PTFE Pleated Filter Cartridge Manufacturer, PTFE Membrane Filter Supplier in India
VVIOK Industry is an established, high-precision ss ptfe filter cartridges manufacturer and technical filtration engineering leader based in Ahmedabad, Gujarat. Engineered to address critical separation challenges across sterile pharmaceutical venting, biotechnology fermentation, semiconductor manufacturing, aggressive chemical handling, and compressed gas sterilization, our advanced ptfe pleated filter cartridge solutions deliver absolute particle retention, superior chemical inertness, and ultra-low extractables. Constructed with expanded polytetrafluoroethylene (ePTFE) membrane media supported by virgin polypropylene or stainless steel reinforcement cages, these cartridges maintain uncompromised structural integrity under extreme operating conditions.
Our high-efficiency ptfe membrane filter cartridge elements are available in naturally hydrophobic configurations for sterile tank venting, compressed air, and gas drying, as well as surface-modified hydrophilic versions for aggressive aqueous acids, photoresists, and active pharmaceutical ingredients (APIs). Complementing our fluoropolymer portfolio, VVIOK Industry also manufactures high-performance nylon pleated filter cartridge units—utilizing naturally hydrophilic Nylon-66 membranes for non-protein-binding terminal clarification of sterile biologicals and specialty organic solvents.
Every teflon cartridge filter produced at our cleanroom facility undergoes 100% automated integrity testing, including bubble point and water intrusion testing (WIT), ensuring zero microbial or particulate bypass. Whether fitted with standard Double Open End (DOE) or sanitary Single Open End (SOE) Code 7 (226 Bayonet) and Code 3 (222 Flat) end adapters, our PTFE filter cartridges withstand repeated clean-in-place (CIP) and autoclave sterilization cycles, guaranteeing unmatched process security across global industrial installations.
Core Performance Features
Engineered by an accredited ss ptfe filter cartridges manufacturer with ISO 9001:2015 and USP Class VI compliance
High-efficiency ptfe pleated filter cartridge offering absolute microbial and particulate retention down to 0.1 µm
Naturally hydrophobic ptfe membrane filter cartridge for sterile air, autoclave vents, and gas fermentation
High-durability teflon cartridge filter construction with broad chemical inertness against aggressive acids and solvents
Complementary nylon pleated filter cartridge range for hydrophilic bio-processing and organic solvent clarification
100% integrity-tested via bubble point and diffusion flow with full cleanroom batch traceability
Sanitary adapter fittings (Code 7 226 Bayonet, Code 3 222 Flat, DOE) ensuring positive bypass-free sealing
Comprehensive Engineering Specifications for PTFE Pleated Filter Cartridges:
1. Membrane Media & Structural Integrity:
• Filtration Media: 100% High-Porosity Expanded Polytetrafluoroethylene (ePTFE / Teflon Membrane)
• Surface Characteristics: Naturally Hydrophobic (Sterile air, venting, gas) or Chemically Treated Hydrophilic (Aggressive solvents, acids)
• Support Layers: High-purity virgin polypropylene or all-welded stainless steel (AISI 304 / 316L) mesh
• Cage, Core & End Caps: Virgin Polypropylene (standard) or Electro-polished SS 316L for high-temperature service
• Assembly Bonding: 100% Thermal Fusion Melt-Welded; free from glues, resins, adhesives, or binders
2. Filtration Performance & Micron Retention:
• Absolute Micron Ratings: 0.05 µm, 0.1 µm, 0.2 µm, 0.45 µm, 1.0 µm, 3.0 µm, 5.0 µm (Absolute Beta Ratio β ≥ 5000)
• Bacterial Challenge Retention: > 10^7 CFU/cm² Brevundimonas diminuta (ATCC 19146) for 0.2 µm rating
• Effective Filtration Area: 0.65 m² to 0.75 m² (7.0 to 8.0 sq. ft.) per 10-inch standard length
• Bubble Point (0.2 µm): ≥ 1.1 bar (16 psi) in 60/40 IPA/water solution; Water Intrusion Test (WIT) validated
3. Operating Conditions & Limits:
• Maximum Operating Temperature: 90°C (PP hardware) / up to 180°C (SS PTFE hardware)
• Maximum Forward Differential Pressure: 4.2 bar (60 psi) at 25°C; 2.0 bar (29 psi) at 80°C
• Maximum Reverse Differential Pressure: 2.1 bar (30 psi) at 25°C
• Sterilization Compatibility: In-line steam sterilization at 121°C / 134°C for 30-minute cycles (up to 50 cycles); autoclave safe
4. Dimensions & End Adapter Options:
• Standard Lengths: 5" (127 mm), 10" (254 mm), 20" (508 mm), 30" (762 mm), 40" (1016 mm)
• Outer Diameter: 68 mm (2.7 inches); Inner Core ID: 28 mm (1.1 inches)
• Adapter Configurations: Code 7 (226 O-ring with 2-tab bayonet lock & spear), Code 3 (222 O-ring with flat cap), Code 8 (222 with spear), and DOE (Double Open End)
• Gasket / O-Ring Materials: FDA-grade Silicone, EPDM, Viton (FKM), and PTFE-encapsulated Viton
